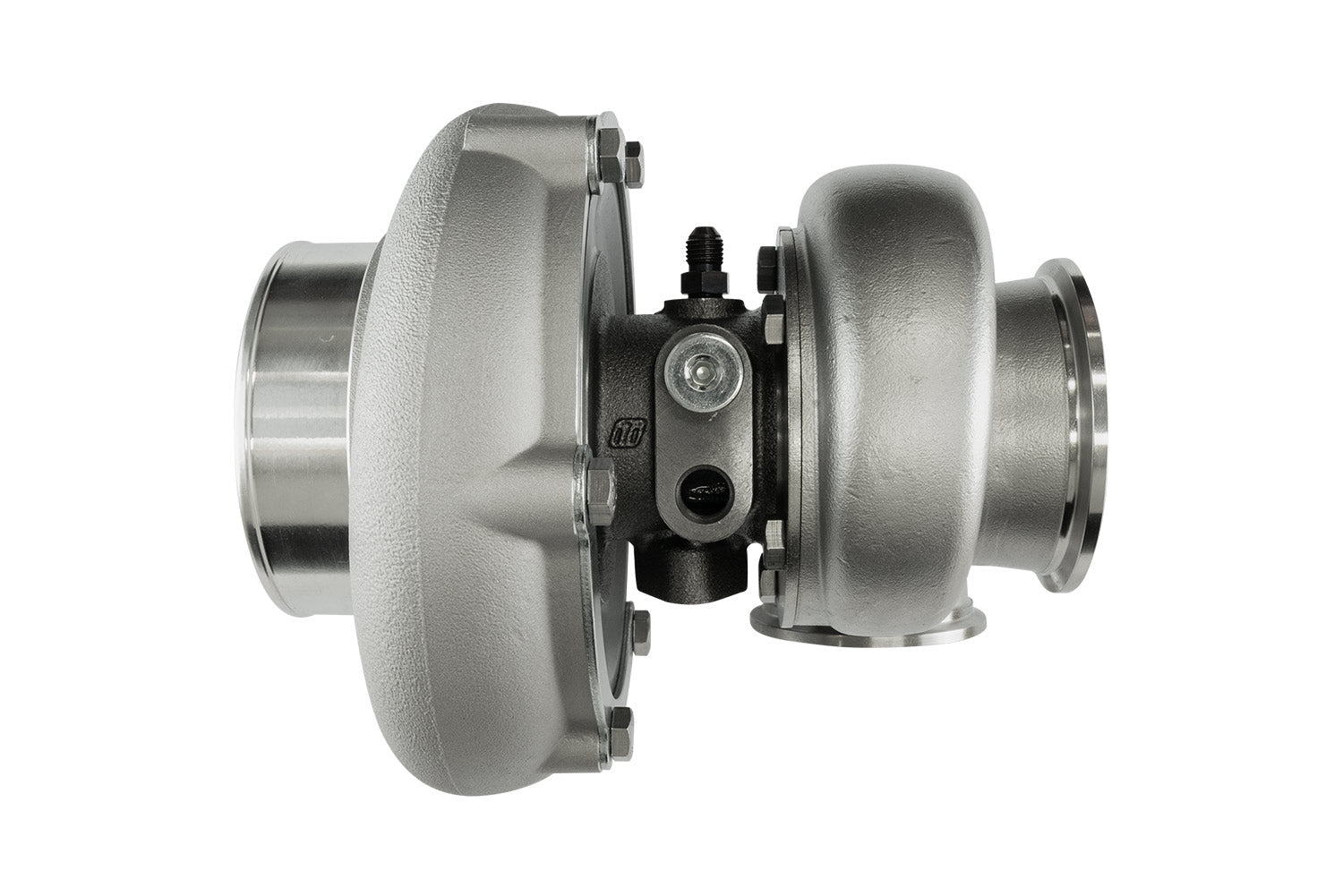

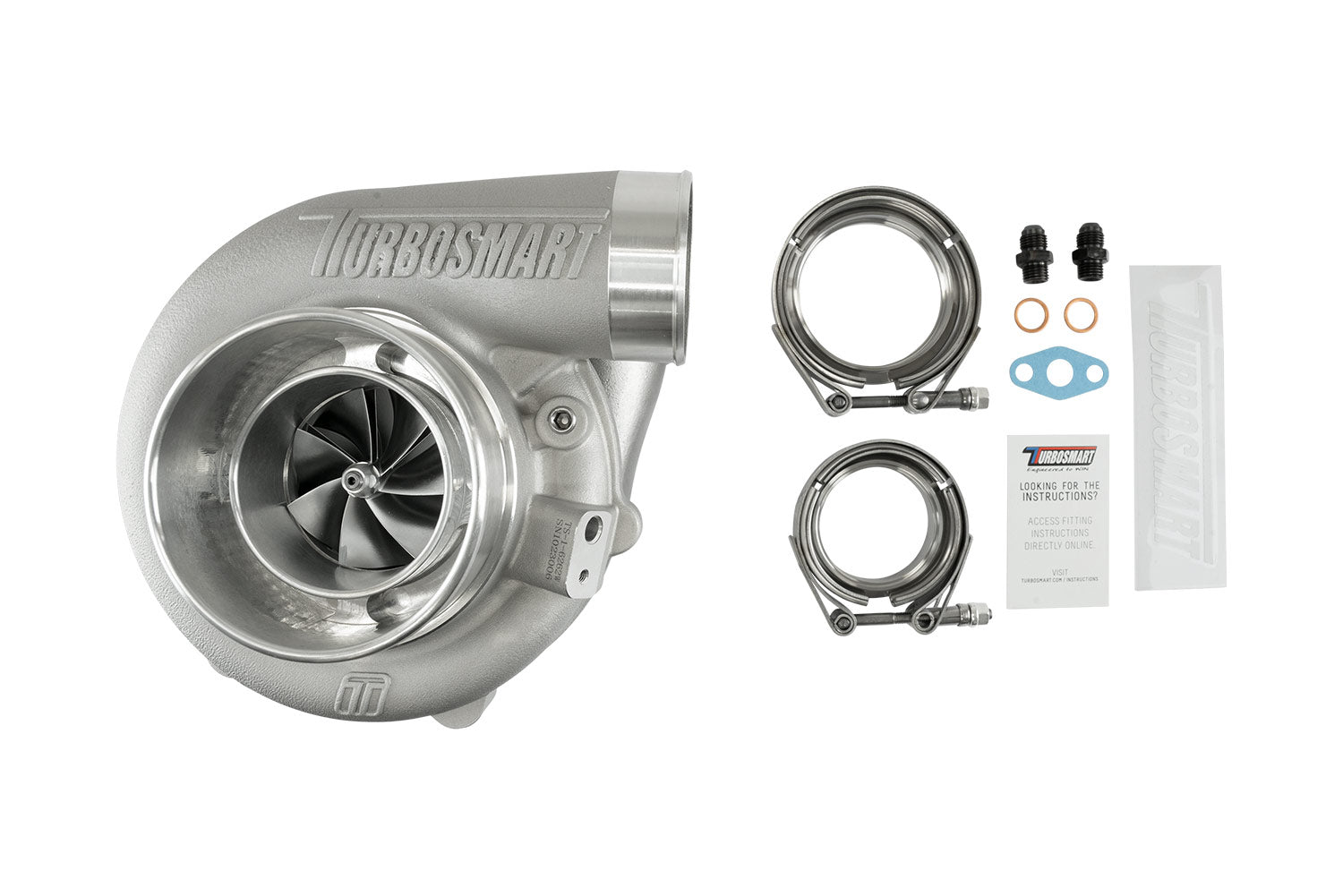

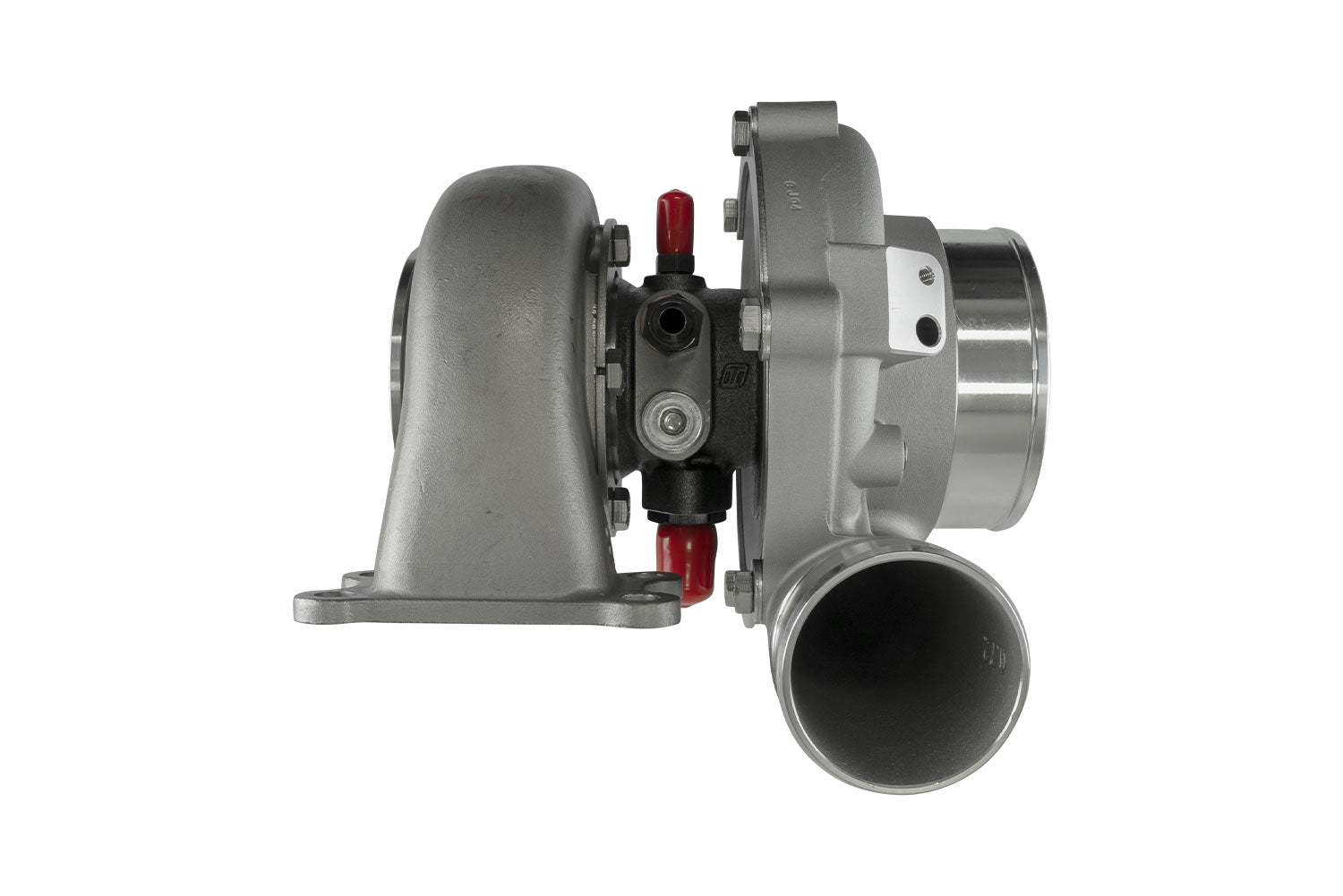

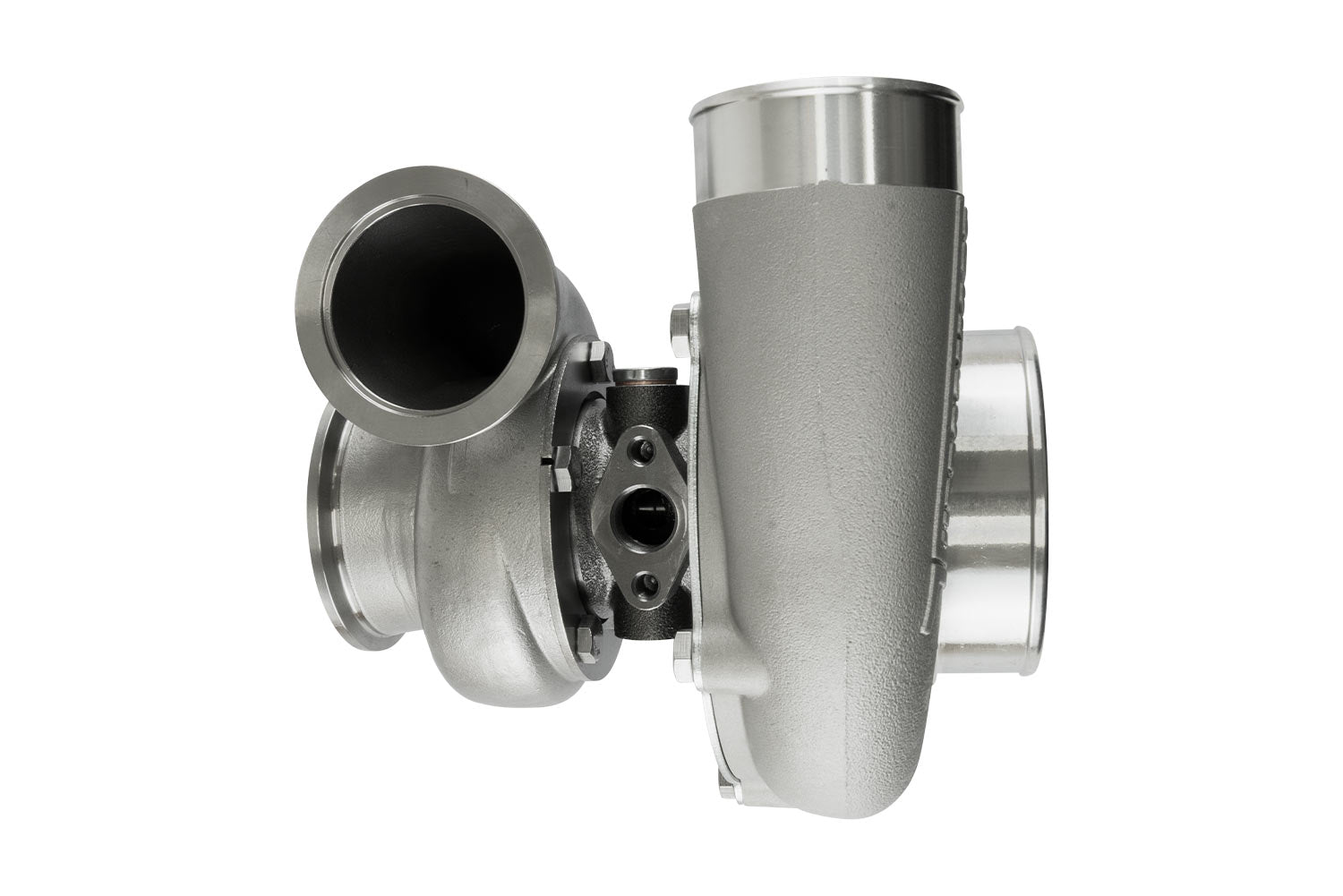

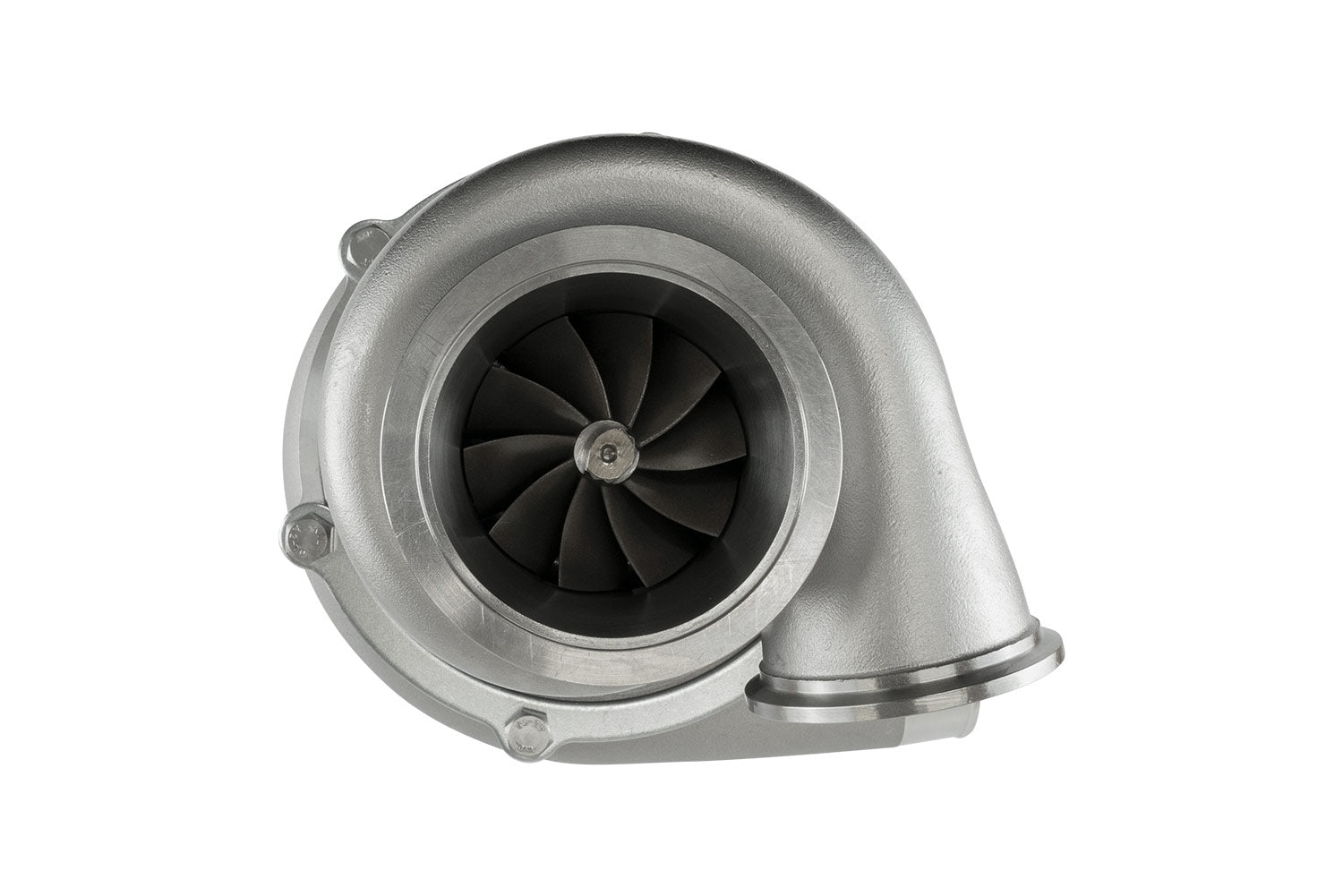

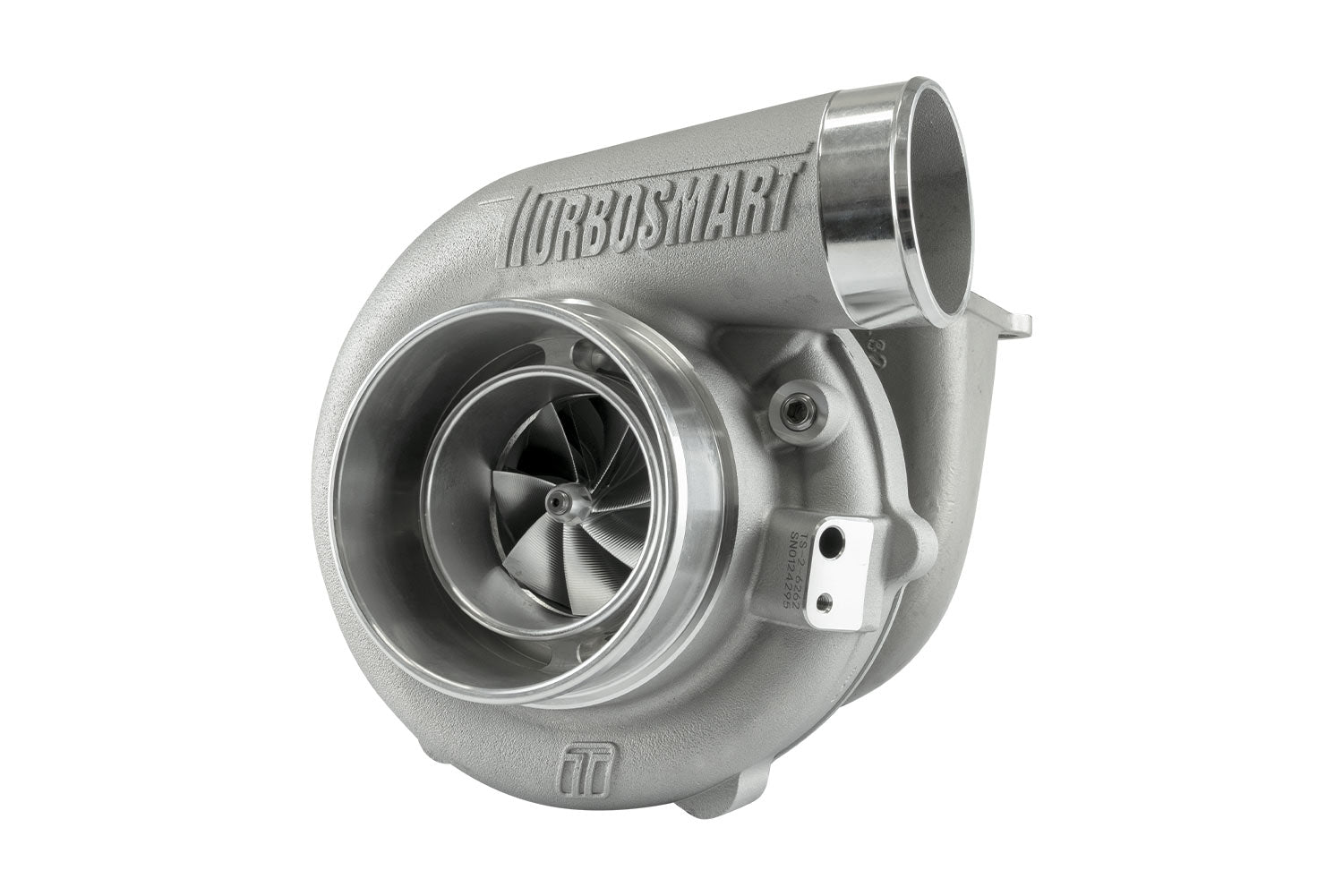

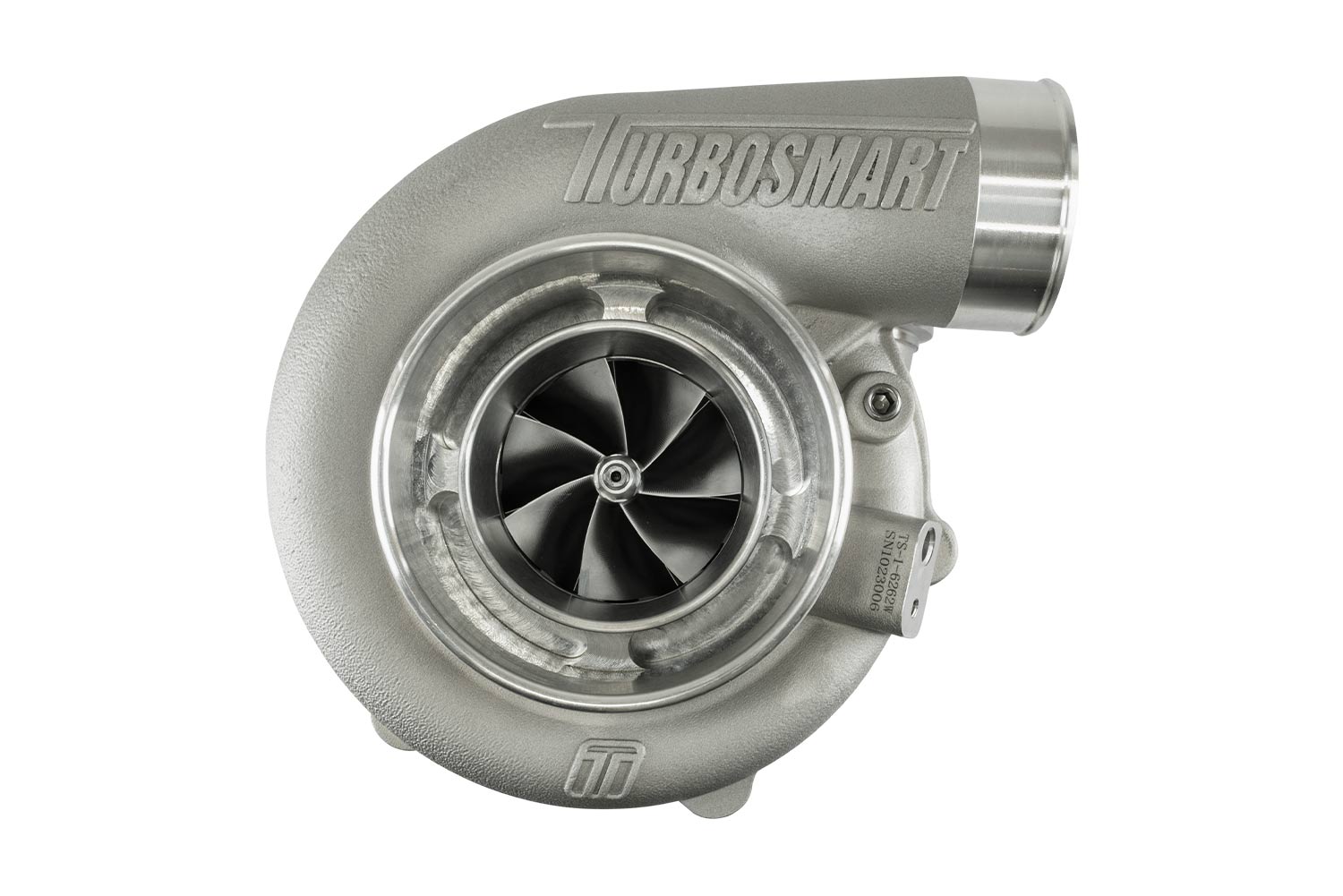

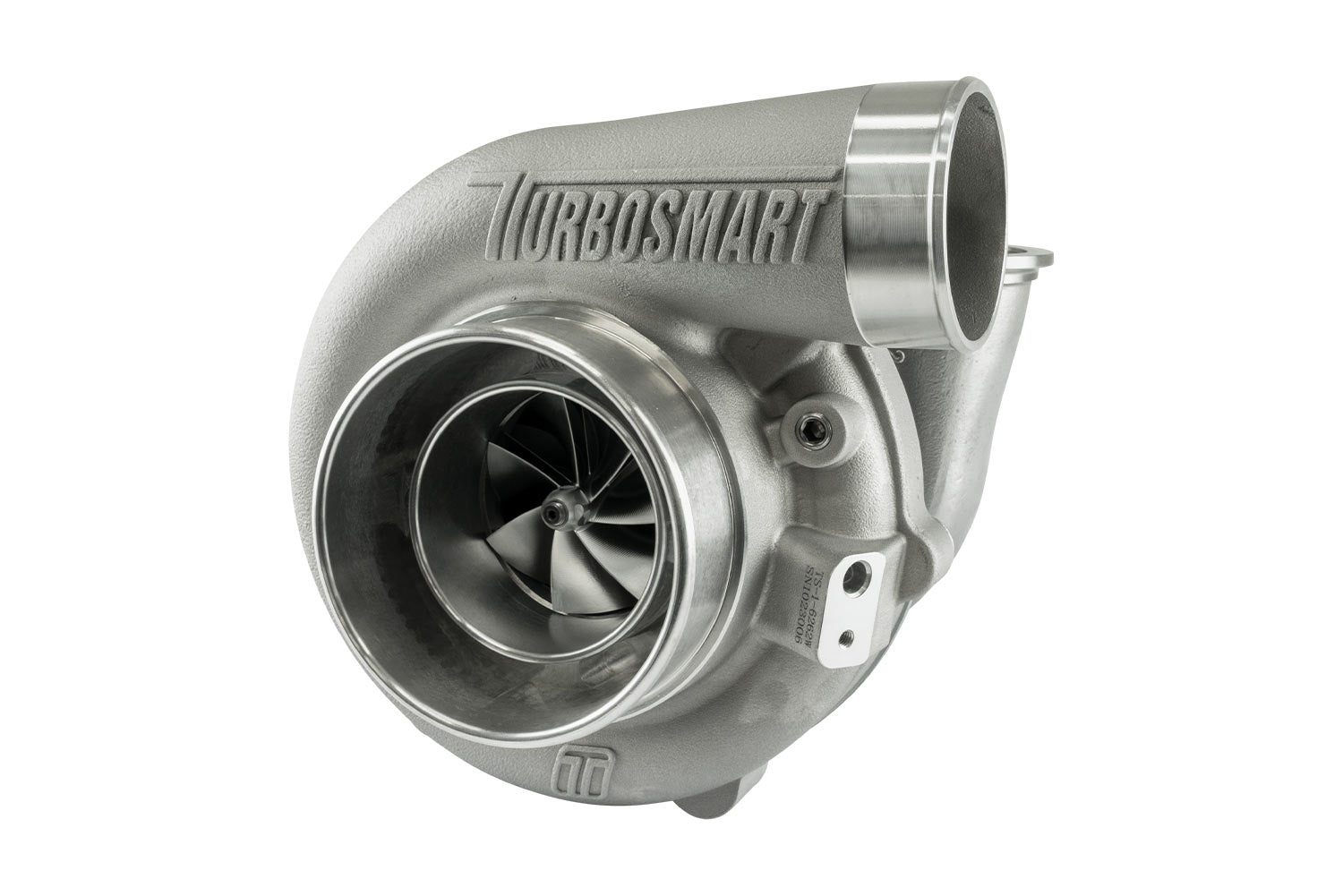

TS-2 Performance Turbocharger (Water Cooled) 6262 V-Band 0.82AR Externally Wastegated

Name: Turbosmart - Water Cooled 6262 V-Band Turbocharger
Brand: Turbosmart
SKU: TS-2-6262VB082E
Price: 3529.95 AUD
Availability: InStock

Smaller, Lighter & Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

The TS-2 series are water and oil cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – While being smaller, lighter and faster in response than other solutions on the market.

Available In
TS-1 oil cooled turbochargers
TS-2 oil and water cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse rotation (Selected Sizes)
Various AR’s options
Internal and external wastegated options available

Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal AR’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 62mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 650-800HP

[{"id":48771620339993,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"TS-2-6262VB082E","requires_shipping":true,"taxable":true,"featured_image":{"id":45516943425817,"product_id":9391420735769,"position":1,"created_at":"2024-05-07T14:58:52+10:00","updated_at":"2024-05-07T14:58:52+10:00","alt":null,"width":1500,"height":1001,"src":"\/\/www.evolutionracingspares.com.au\/cdn\/shop\/files\/TS-1-6262-VB082E_ad324fb9-dfec-44af-9aaf-9e04257ee75a.jpg?v=1715057932","variant_ids":[48771620339993]},"available":true,"name":"Turbosmart - Water Cooled 6262 V-Band Turbocharger","public_title":null,"options":["Default Title"],"price":352995,"weight":7800,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":38011600208153,"position":1,"preview_image":{"aspect_ratio":1.499,"height":1001,"width":1500,"src":"\/\/www.evolutionracingspares.com.au\/cdn\/shop\/files\/TS-1-6262-VB082E_ad324fb9-dfec-44af-9aaf-9e04257ee75a.jpg?v=1715057932"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

TS-2 Performance Turbocharger (Water Cooled) 6262 V-Band 0.82AR Externally Wastegated

Smaller, Lighter & Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

The TS-2 series are water and oil cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – While being smaller, lighter and faster in response than other solutions on the market.

Available In
TS-1 oil cooled turbochargers
TS-2 oil and water cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse rotation (Selected Sizes)
Various AR’s options
Internal and external wastegated options available

Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal AR’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 62mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 650-800HP
