Radium - EVO 7-8-9 Fuel Pump Hanger

SKU: 20-0345-00
Radium - EVO 7-8-9 Fuel Pump Hanger

Radium - EVO 7-8-9 Fuel Pump Hanger

SKU: 20-0345-00
Select Hanger
Plumbing Kit
Regular price $841.24
/
  • In stock, ready to ship
  • Inventory on the way

Click here to download installation instructions (PDF)

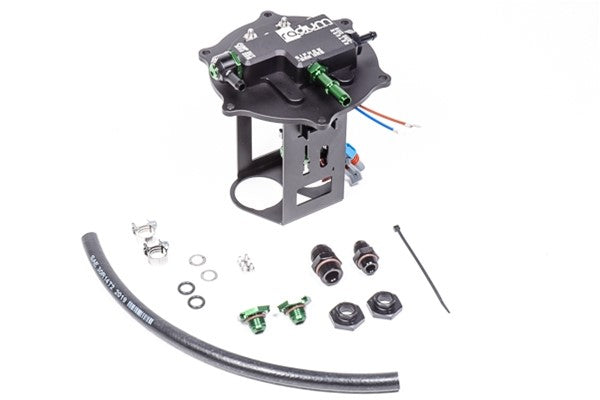

The Radium Engineering fuel pump hanger allows the use of 1 or 2 aftermarket pumps in the stock Mitsubishi Evo 7-8-9 fuel tank.


The machined assembly drops-in the factory fuel tank replacing the OEM hold-down flange. A single 8AN male pump feed port and 6AN male return port simplify aftermarket -AN hose plumbing. However the preassembled adapter fittings are compatible with the OEM fuel lines. This system is ONLY compatible with the following pumps:

20-0345-00
Walbro F90000267
Walbro F90000274
Walbro F90000285

20-0345-10
AEM 50-1220 E85 pumps.

The custom designed stainless electrical studs easily handle the high current demand that compact bulkhead connectors lack. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the OEM cover plate. Nonconductive acorn nuts are provided to prevent any accidental short circuits. Furthermore the high quality in-tank wiring is insulated with chemically resistant ETFE. Electrical hardware is included for the fuel pump(s) and OEM level sender.

One major issue with the OEM EVO 7-8-9 fuel pump hanger is the restrictive return port and venturi jet pump. When using aftermarket high-flow fuel pumps the OEM jet pump becomes too restrictive creating unwanted backpressure in the regulator return line causing excessive fuel rail pressure. The Radium fuel pump hanger includes a venturi jet pump with a new integrated pressure-relief valve to minimize back pressure.

All returning fuel from the pressure regulator and crossover hose exit the jet pump keeping the OEM gas tank baffle full for starvation protection.

Single pump applications can reuse the OEM fuel pump controller wiring but it is recommended to upgrade the OEM wiring as these high flow fuel pumps draw additional current requiring larger gauge wire. Select qty1 for single pump applications and qty2 for dual pump applications.


Features
-Anodized Aluminum Mounting Plate
-Venturi Jet Pump with Pressure Relief Valve
-8AN Male and OEM Compatible Pump Outlet Fittings
-6AN Male and OEM Compatible FPR Inlet Fittings
-Anodized Aluminum Dual Pump and Fuel Sender Bracket
-Electrical Hardware for Fuel Pumps and OEM Sender
-Fluorosilicone Duckbill Return Valve
-Submersible Rubber Fuel Hose
-Stainless Steel Hardware and Clamps


Pump Configuration Selection

- There will be enough components included with this option to use 1 or 2 fuel pumps. Depending on the setup some parts will simply not be used (20-0345-10 shown below).

- A pliable fuel pump filter sock must be used for proper fitment.


NOTE: This kit eliminates the OEM hanger's "post" fuel pump filter. A low micron aftermarket fuel filter should be installed downstream to protect the injectors from debris. NOTE: the optional fuel hanger plumbing kits listed below include this necessary post pump filter.


Option

20-0376-0X FUEL HANGER PLUMBING KIT EVO 7-8-9
The plumbing kits include everything required to connect directly to an aftermarket (-8AN male) fuel rail and (-6AN male) FPR for both single and dual pump configurations.  This includes a pre-made PTFE -8AN feed line from the hanger up to the engine bay and the kit re-uses the factory feed line as the regulator return line.

PTFE -8AN hoses attach to a Radium Engineering fuel filter that mounts underneath the vehicle using a specifically designed EVO 7-8-9 bolt-on bracket.

Depending on the kit selected (-01-03-05) the fuel filter will be assembled with 1 of 3 different elements. Go HERE for more filter element information.

INCLUDES
-Fuel Filter (-03 Stainless or -05 Microglass)
-Black 8AN Male Adapter Fittings (x2)
-Billet Aluminum 60mm Filter 2-Piece Clamp
-Aluminum EVO 7-8-9 Filter Bracket
-8AN PTFE Fuel Feed Hose Replacement (x2)
-6AN PTFE Fuel Return Replacement
-Vapor Shield Hose 6AN ORB Fitting and EFI Clamp
-Inverted Flare to 6AN Adapter Fitting
-Stainless Steel Hardware

"
