Mitsubishi Lancer Ralliart 4B11T Direct Replacement Exhaust Manifold

SKU: 4B11T-RA-DR-EX

Mitsubishi Lancer Ralliart 4B11T Direct Replacement Exhaust Manifold

SKU: 4B11T-RA-DR-EX
Regular price $1,200.00
/
  • Low stock - 1 item left
  • Inventory on the way

Specifications:

  • Material: SUS347 Stainless Steel Investment Cast Construction

Features:

  • 33mm ID runners.
  • Retains the use of the OEM heat shield (1" Raised) and hardware.
  • Lengthened center 2 runners for a more equal length design.
  • Direct replacement for factory turbo manifold.

Package Contents:

  • Exhaust Manifold

Notes:

  • Turbo Compatibility: Stock Frame Turbochargers
  • Mitsubishi Lancer Ralliart 2009-2015
  • Designed in Australia with Lifetime Warranty*

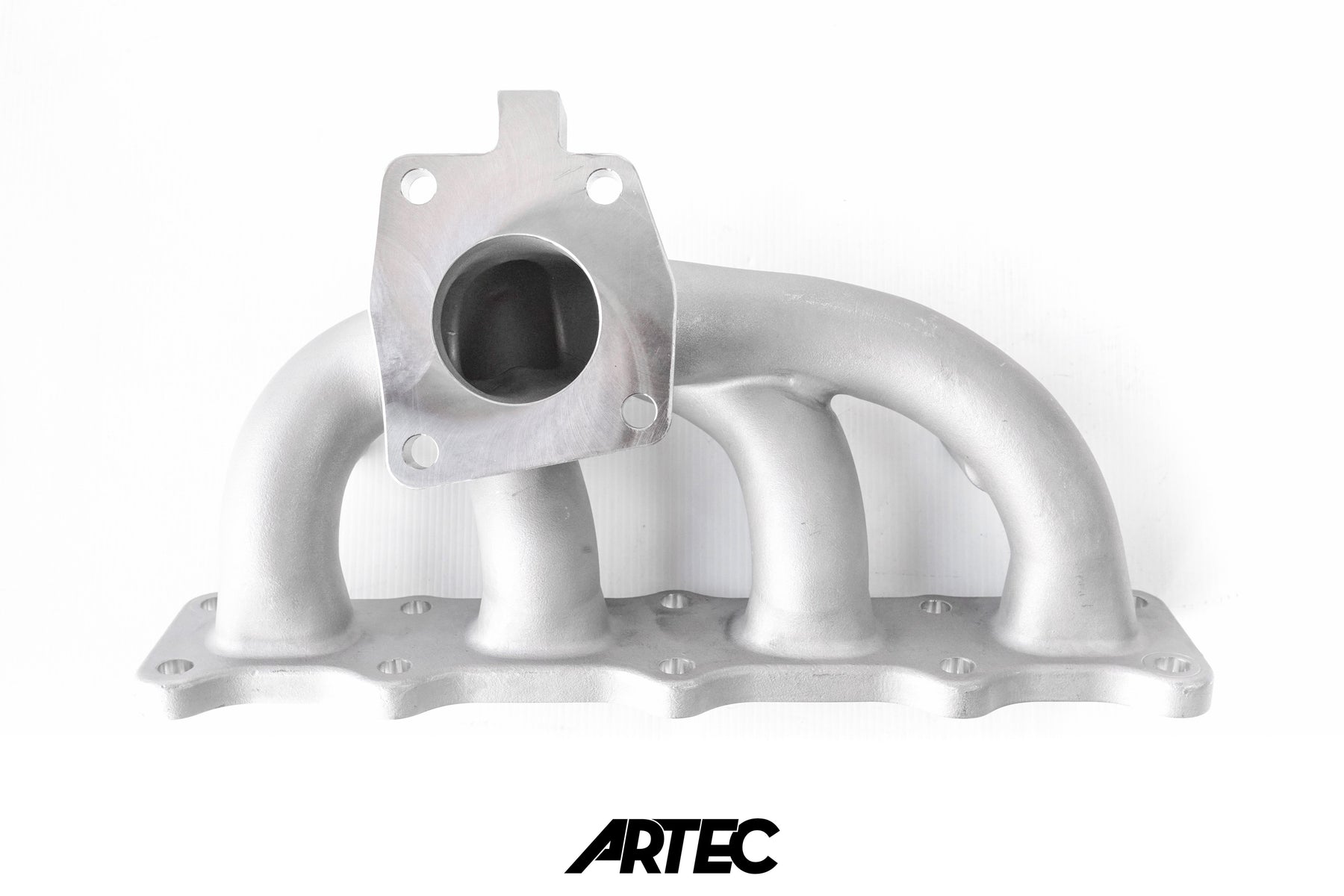

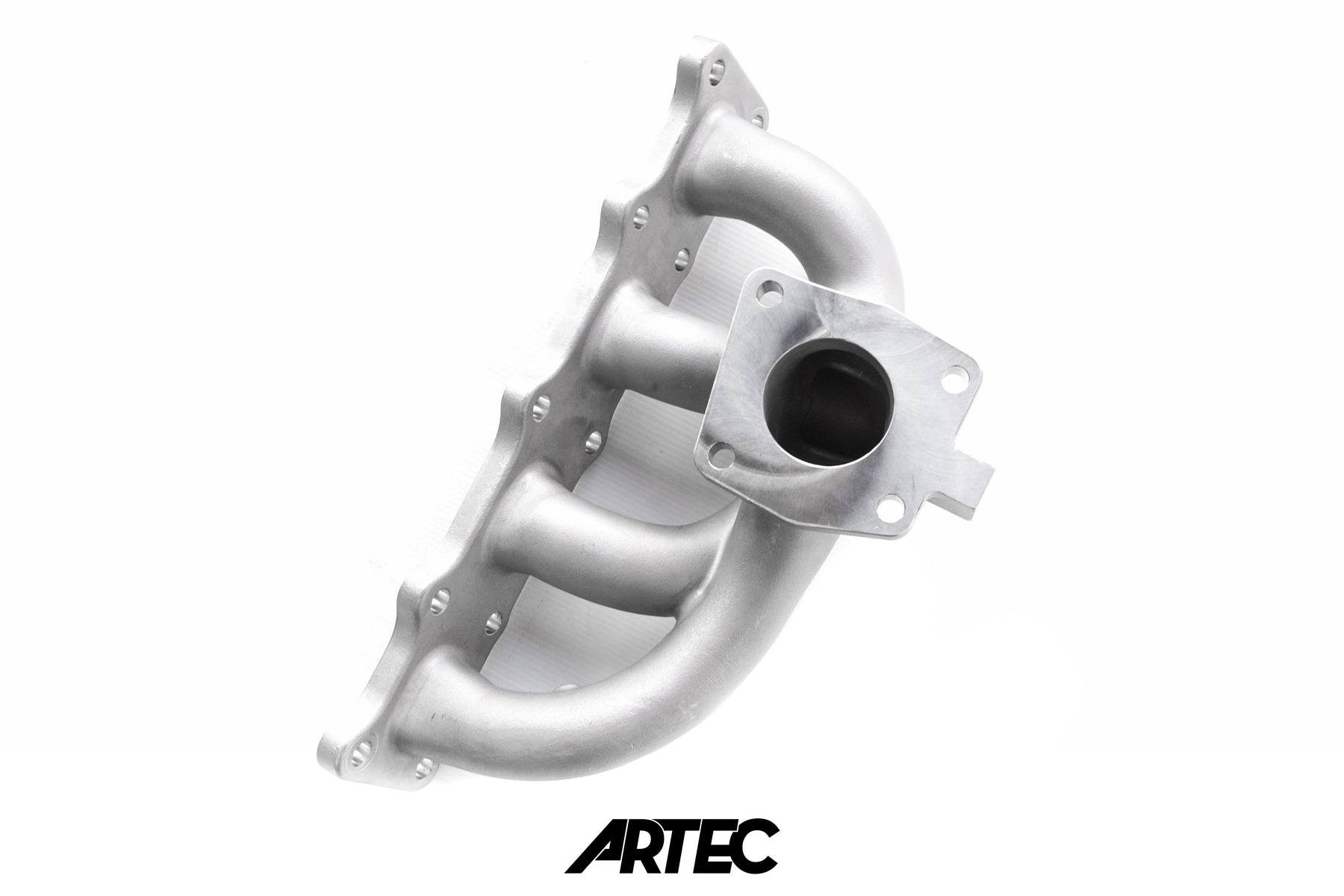

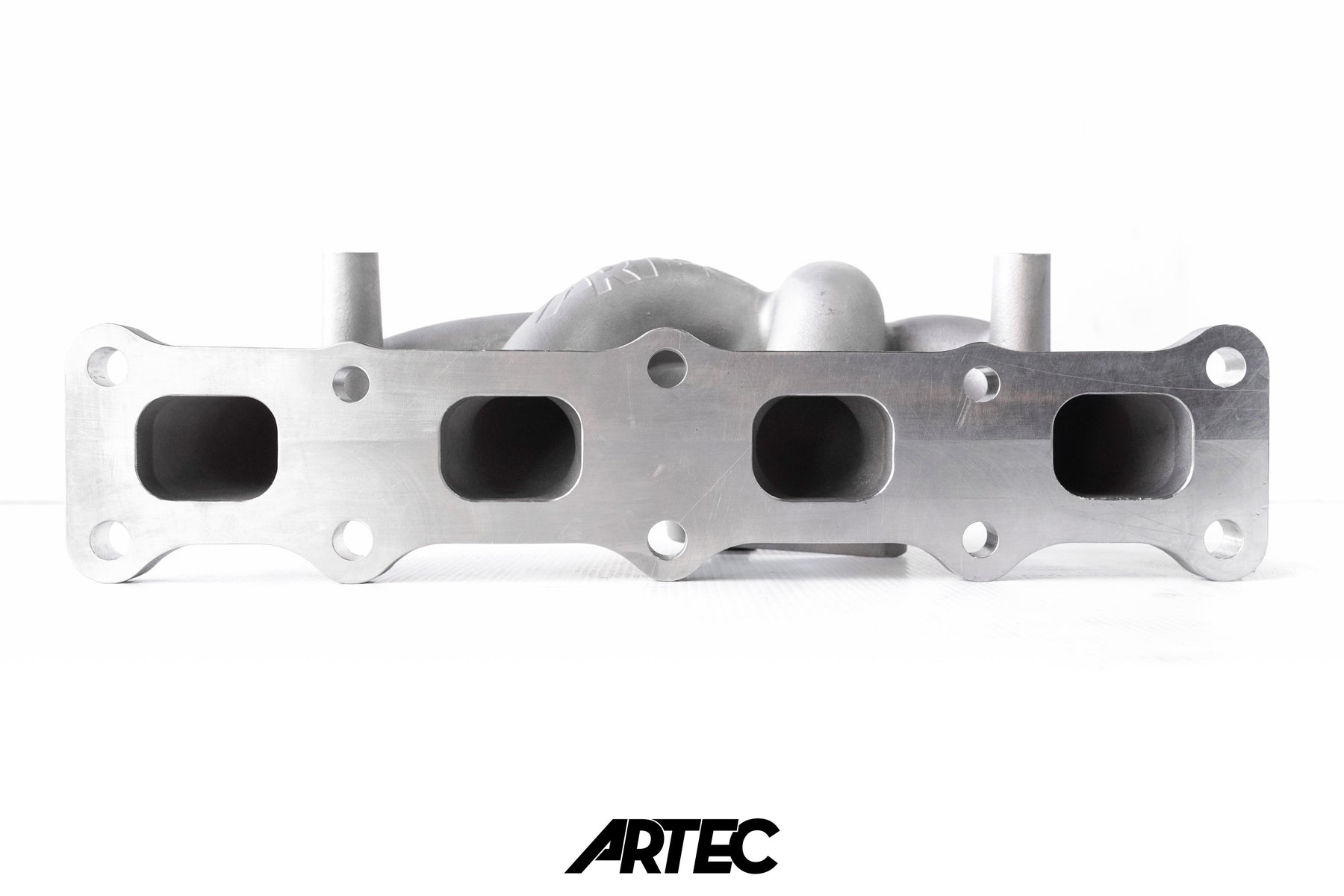

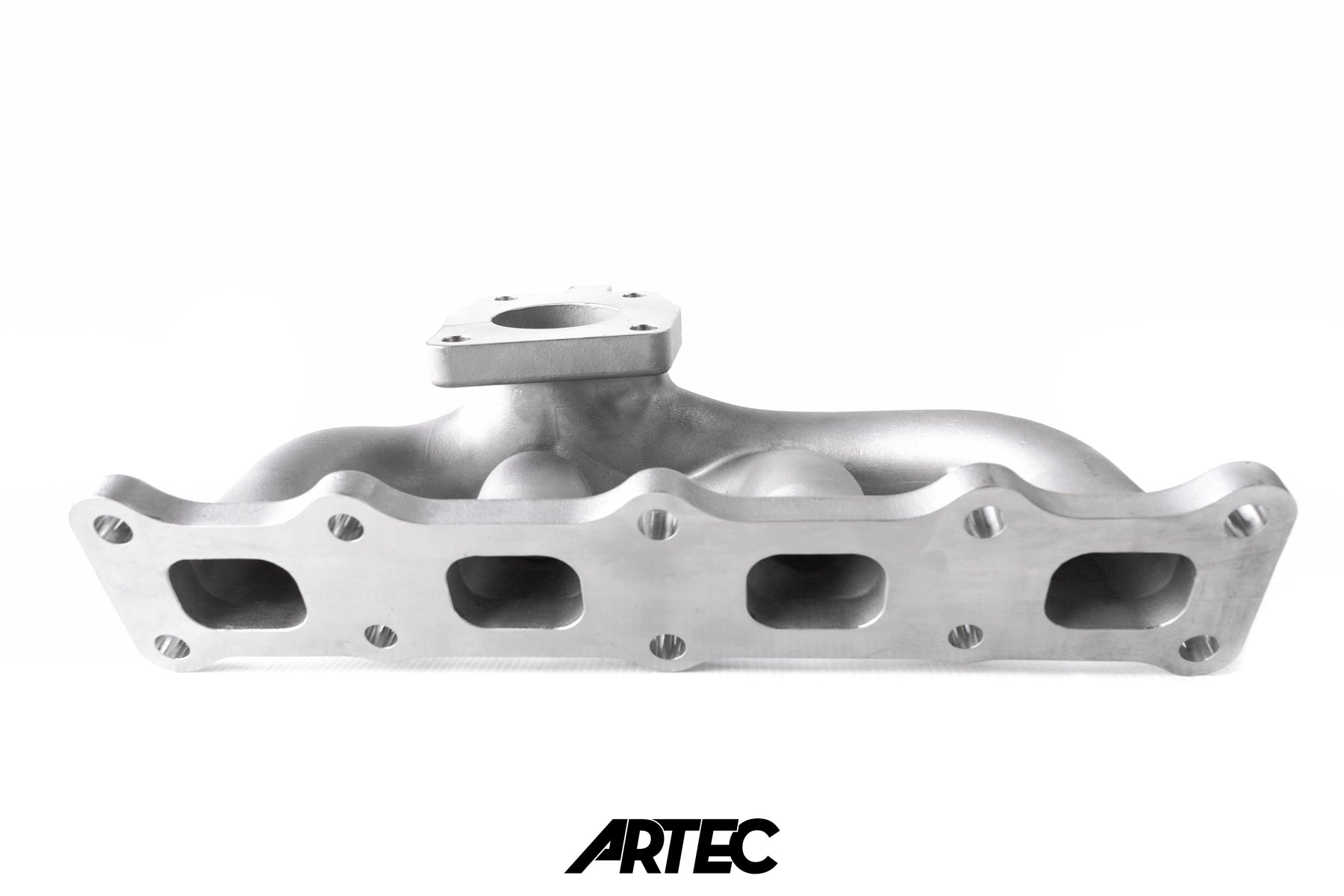

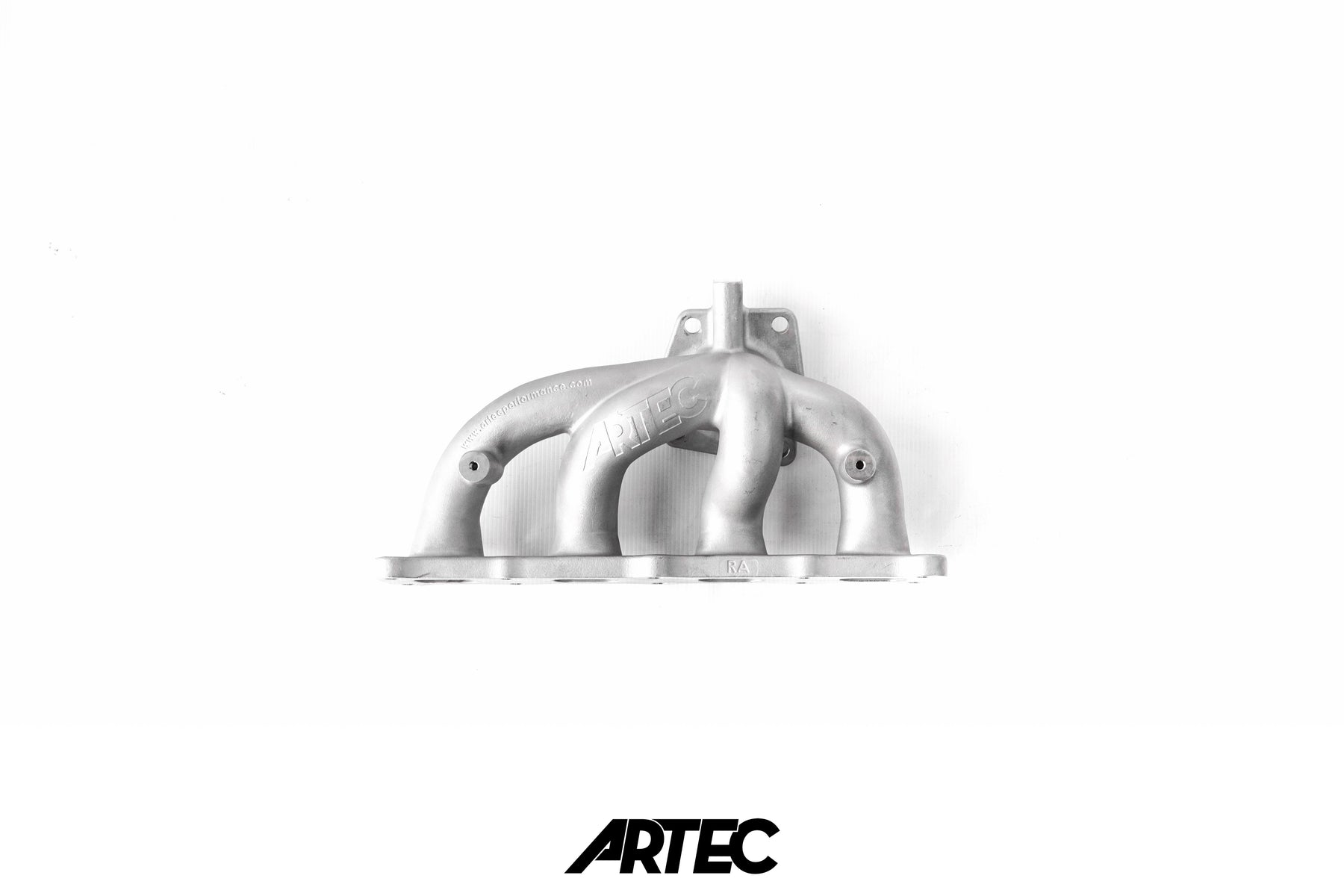

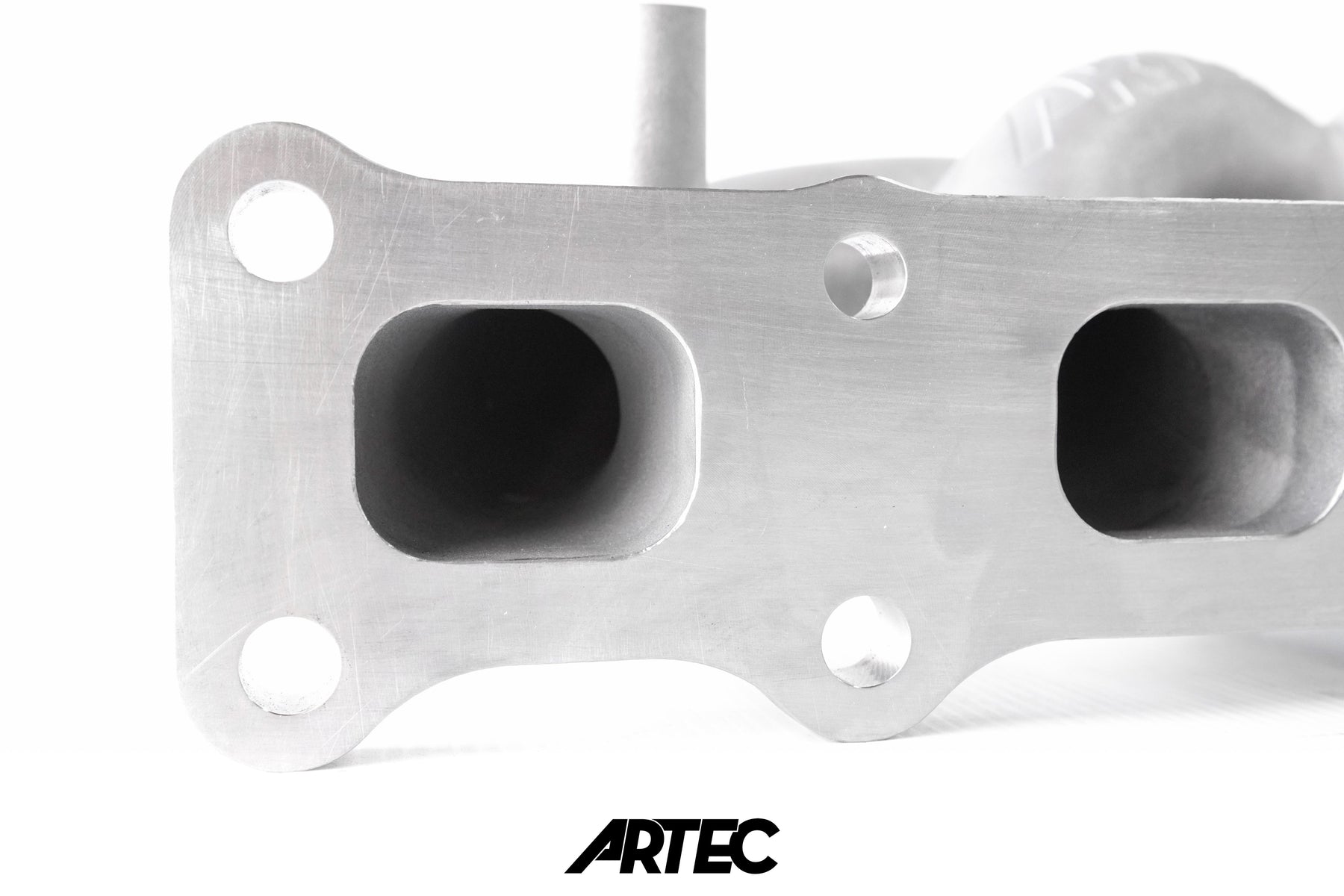

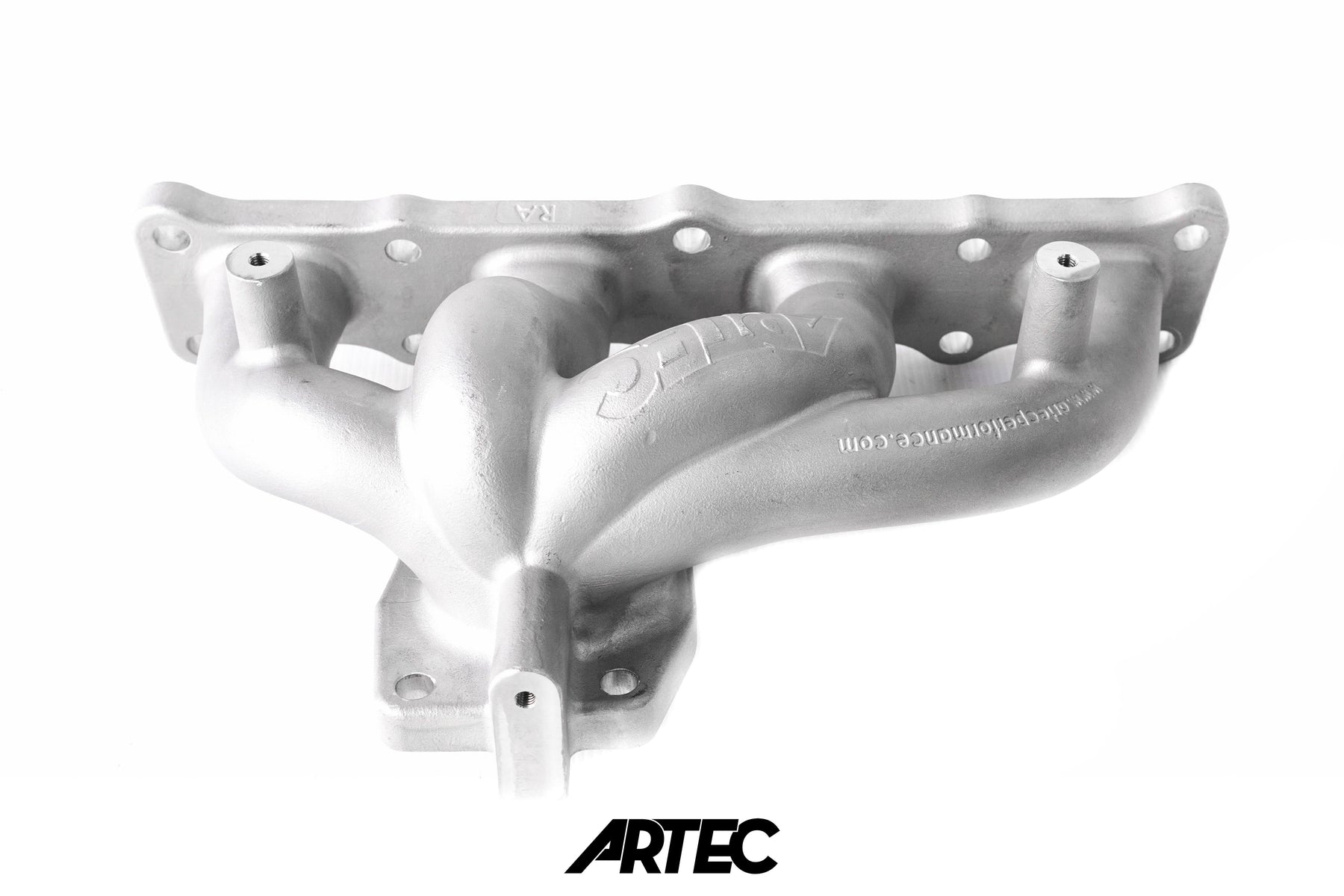

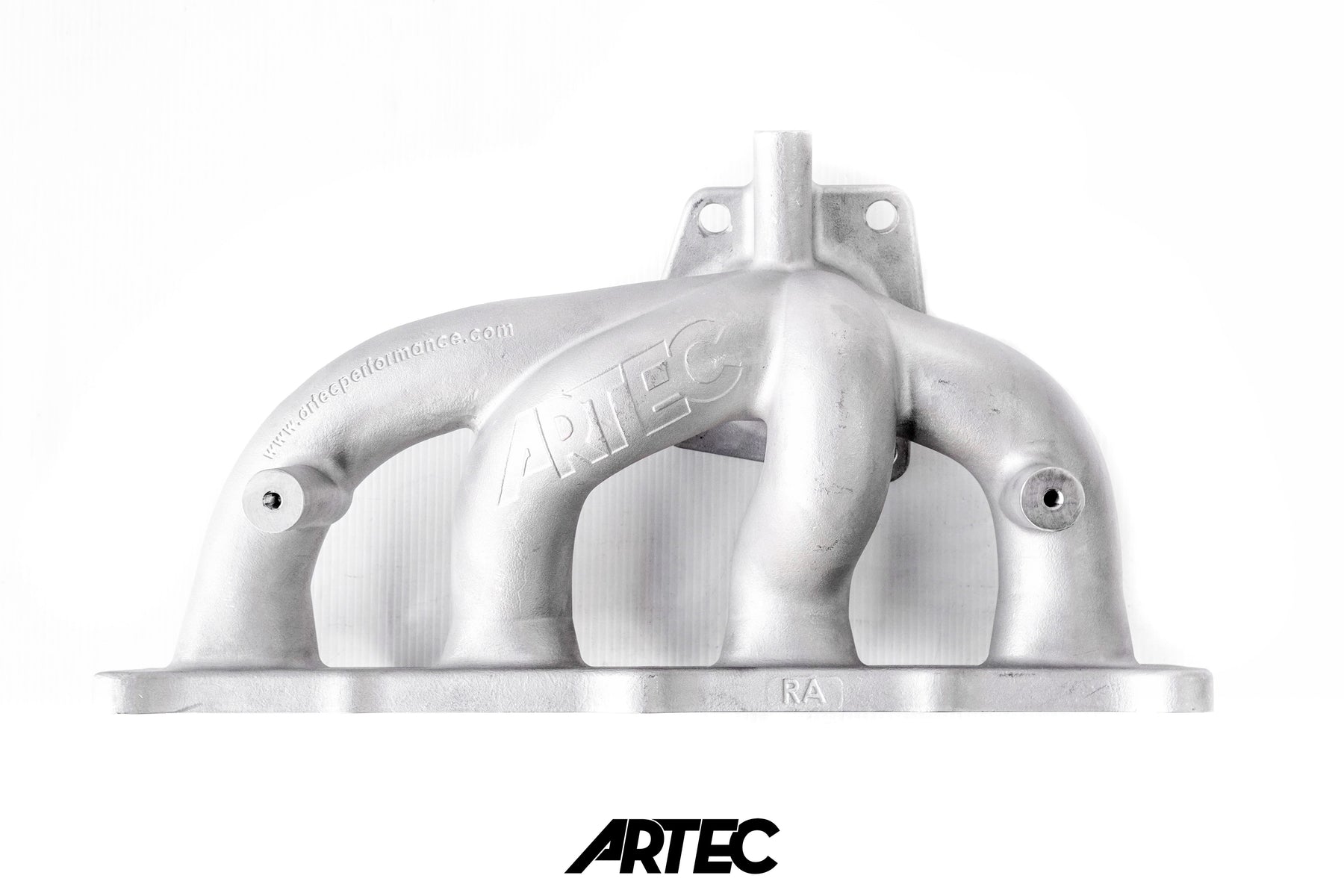

Artec direct replacement cast stainless steel turbo exhaust manifold for the Mitsubishi Lancer Ralliart 2009-2015.

The biggest flaw on the factory manifold is only 3 runners reaching the collector even though its a 4 cylinder. 2 runners were merging just before the tight radius in the turbo flange area. The cracks were appearing along where the y runner met the other 2 runners.

This is because twice the hot air flows in the same diameter pipe, resulting the runner with a much greater hot spot which causes it to expand more. So where it was cracking is where the metal is moving the greatest amount.

So when ARTEC was designing this manifold, they removed the particular hot spot by removing the restriction and/or bottle neck caused by the tight radius’ to increase flow.

Made from 347 Stainless Steel, the runners have an inner diameter of 33mm, this combined with the longer radius’ keeps response up by reducing manifold volume, but also keep flow up.

 --

At ARTEC we have revolutionised the turbo manifold industry with our industry leading SUS347 stainless steel investment cast manifolds.

All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.

The result is a truly optimised manifold with consistent performance, resistant to heat pooling and cracking, plus a beautiful smooth exterior finish.

Designed and tested in Australia, backed with a lifetime warranty.

    Small items: 1-3 Days via Express Post Satchel

    Medium Sized Items: 2-3 working days via AusPost Express or Courier (Depending on location)

    Large Items: 2-8 working days (Large items can only be sent via courier, and delivery time depends on both courier and location

    *Delivery to rural or remote areas, NT, WA, and TAS may take longer*

    Specifications:

    • Material: SUS347 Stainless Steel Investment Cast Construction

    Features:

    • 33mm ID runners.
    • Retains the use of the OEM heat shield (1" Raised) and hardware.
    • Lengthened center 2 runners for a more equal length design.
    • Direct replacement for factory turbo manifold.

    Package Contents:

    • Exhaust Manifold

    Notes:

    • Turbo Compatibility: Stock Frame Turbochargers
    • Mitsubishi Lancer Ralliart 2009-2015
    • Designed in Australia with Lifetime Warranty*

    Artec direct replacement cast stainless steel turbo exhaust manifold for the Mitsubishi Lancer Ralliart 2009-2015.

    The biggest flaw on the factory manifold is only 3 runners reaching the collector even though its a 4 cylinder. 2 runners were merging just before the tight radius in the turbo flange area. The cracks were appearing along where the y runner met the other 2 runners.

    This is because twice the hot air flows in the same diameter pipe, resulting the runner with a much greater hot spot which causes it to expand more. So where it was cracking is where the metal is moving the greatest amount.

    So when ARTEC was designing this manifold, they removed the particular hot spot by removing the restriction and/or bottle neck caused by the tight radius’ to increase flow.

    Made from 347 Stainless Steel, the runners have an inner diameter of 33mm, this combined with the longer radius’ keeps response up by reducing manifold volume, but also keep flow up.

     --

    At ARTEC we have revolutionised the turbo manifold industry with our industry leading SUS347 stainless steel investment cast manifolds.

    All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.

    The result is a truly optimised manifold with consistent performance, resistant to heat pooling and cracking, plus a beautiful smooth exterior finish.

    Designed and tested in Australia, backed with a lifetime warranty.
