Haltech - uC-10 Digital Dash
SKU: HT-068000
Haltech - uC-10 Digital Dash

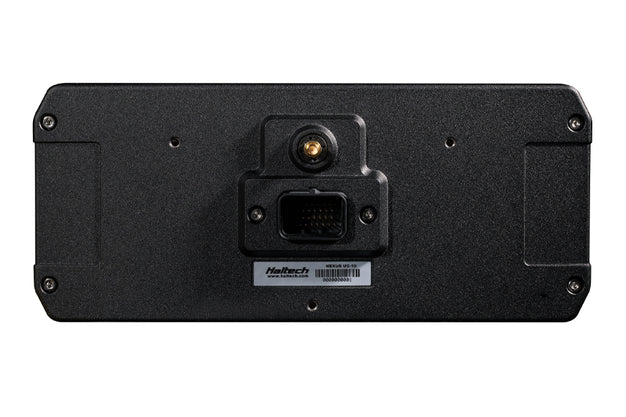

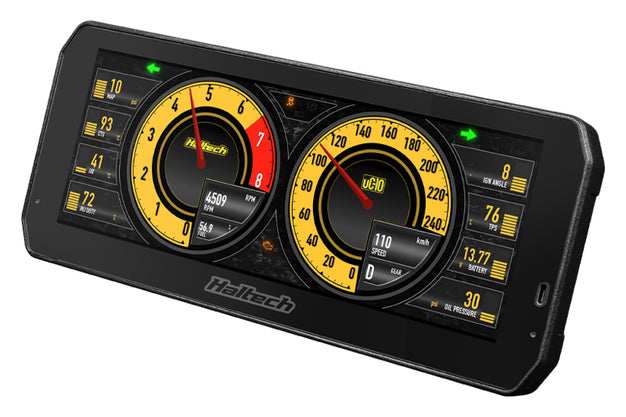

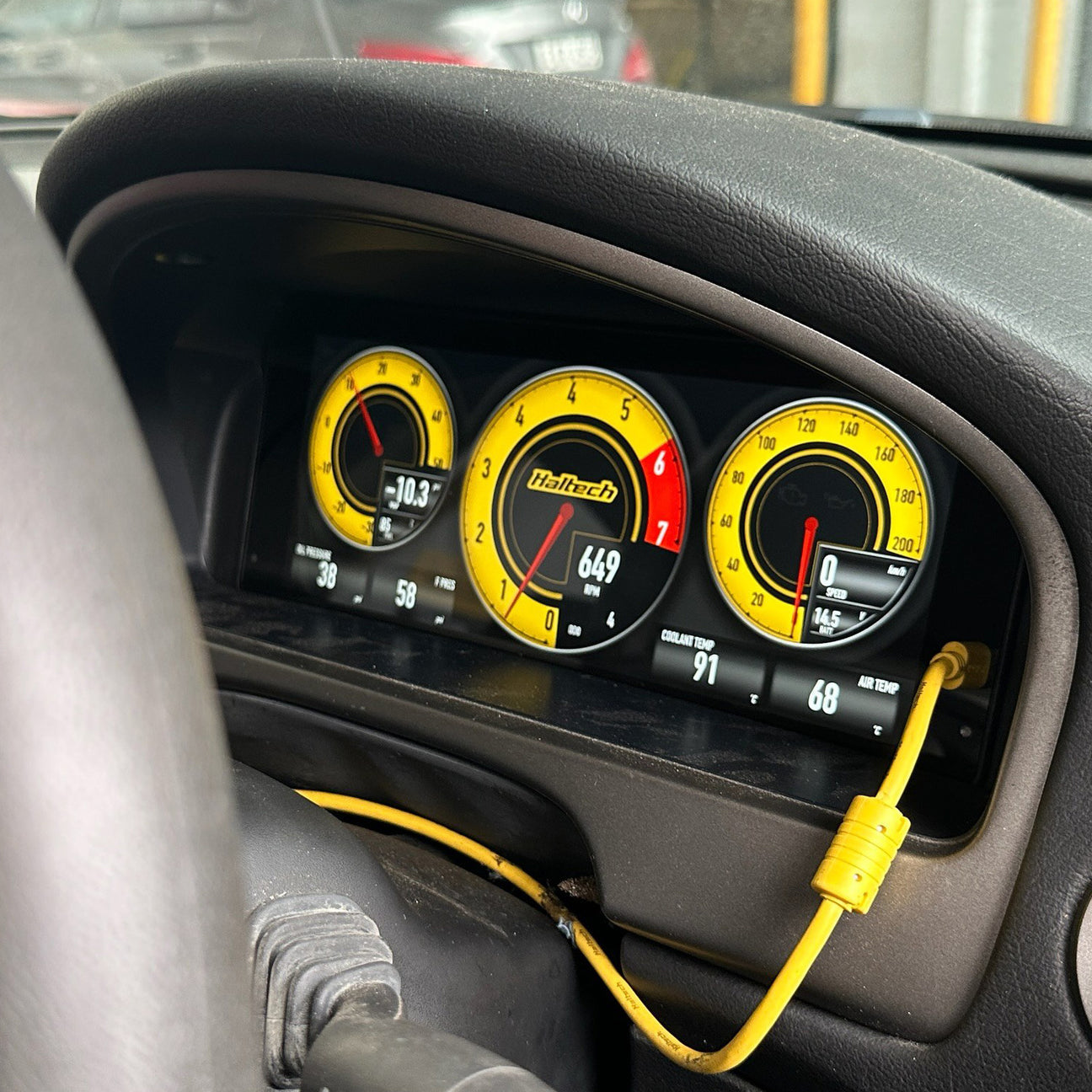

With a crisp clear and full-color display the all-new Haltech uC10 Display Dash is now available for pre-order. The uC-10 is compatible with Haltech CAN OBD2 and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups. The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.

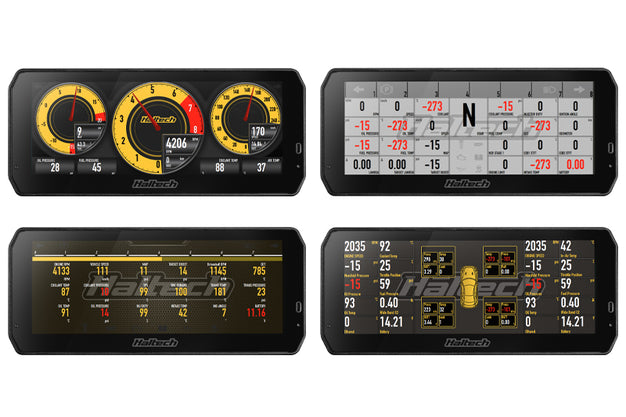

- Full-colour optically-bonded TFT screen
- 70° minimum viewing angle (vertical and horizontal)
- 1280 x 480 resolution 600+ lumens
- IP64 (Dust-tight and protected against water splashes)
- 6-digit odometer
- 512MB of on-board looped data logging
- NSP compatible
- 10 x user configurable AVIP's
- 4 x user configurable DPO's
- 4 x user configurable SPI's
- 1 x dedicated Tacho Input
- 1 x dedicated alternator excite
- 2 x Ambient light sensors
Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link MaxxECU Microtech MoTeC M1 series MoTeC hundred series- (M400600800 gold box ECUs) Syvecs.

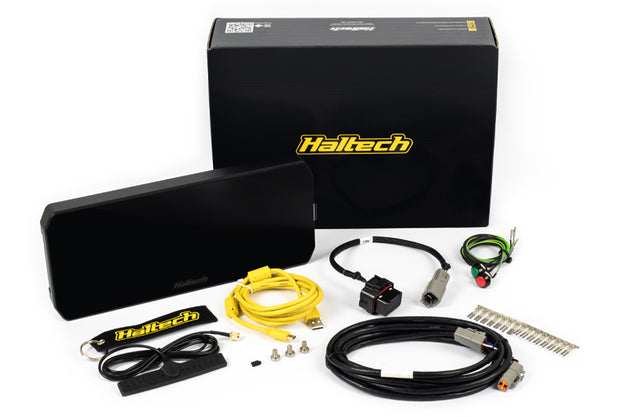

Includes: 1 x Haltech uC-10 Display Dash 1 x 34P connector - same as HT-131001 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in) 1 x USB-C cable 3 x M5 x 8mm mounting screws 2 x Momentary switches pre-terminated 800mm 22AWG Cable 1 x Glass Mount WiFi antenna 1 x Haltech fabric keytag Haltech stickers
