Are you sick of heavy pedal effort or harsh engagement of performance pull type clutches?? With the world wide patent pending "Double Action Release mechanism", ATS has shattered the conventional pull type clutch concept.
* With the unique Double Action Release Mechanism, the new pull type clutches provide an incredibly easy operation for both street and race track.
* Clutch pedal effort is 11kg to 12kg which is slightly lighter than stock. The pedal effort of the 1,700kg version is 15 % to 20 % heavier than stock.
* The clutch engagement point is in the middle of the pedal stroke and there is not much difference from the stock organic clutch
* Compared to the conventional pull type clutch, the ATS pull type gives the driver a wider engagement (slipping) point for much easier launch
* Crisp and very sharp disengagement
* It comes with ATS wedge collar and you can use the stock throwout bearing (except for Evo 10 for which requires the Evo 9 stock throwout bearing)
1) Excellent pedal effort (very light) * 1,700kg version has about 20 % heavier pedal effort
2) Excellent clutch engagement
3) Excellent shift feel (quick and crisp)
4) Excellent price (very economical metal clutch)

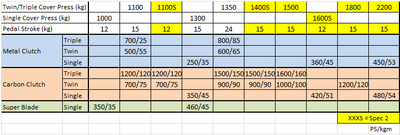

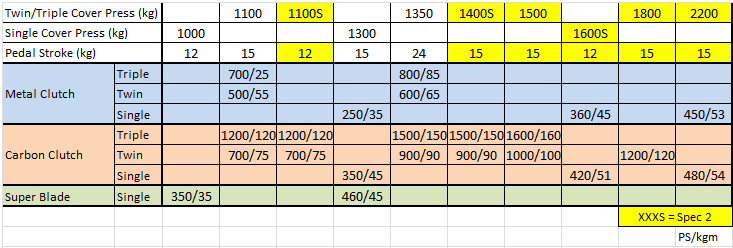

Torque / Horsepower capacity
The pull clutch has 1,300kg clamping force. ( 1,700kg clamping force is available for the twins).
