The Ultimate Wet-Sump Solution for the Evo 4-9, 4G63.

Once being modified for track work, or fitted with larger tyres enabling increased cornering speeds, the oil pressure in the engine becomes inconsistant which when not addressed, will eventually lead to possible engine failure.

Unlike other available upgraded sumps, the Infinite Evo sump addresses the root cause of this oil pressure drop by re-designing the oil pickup, drain and regulator arrangement.

Features include:

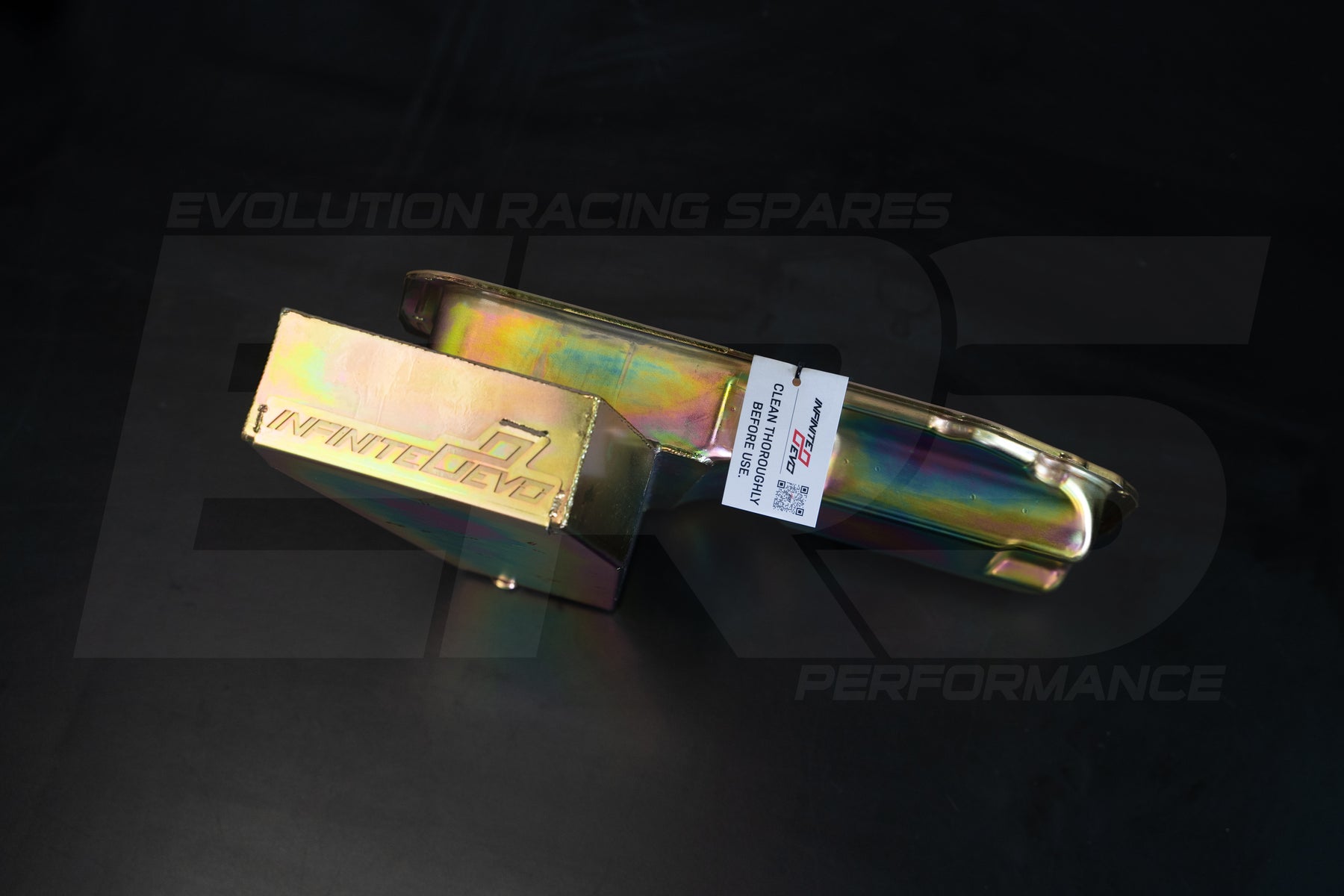

• Manufactured from a new oil pan, guaranteeing correct fitment.

• No core exchange required!

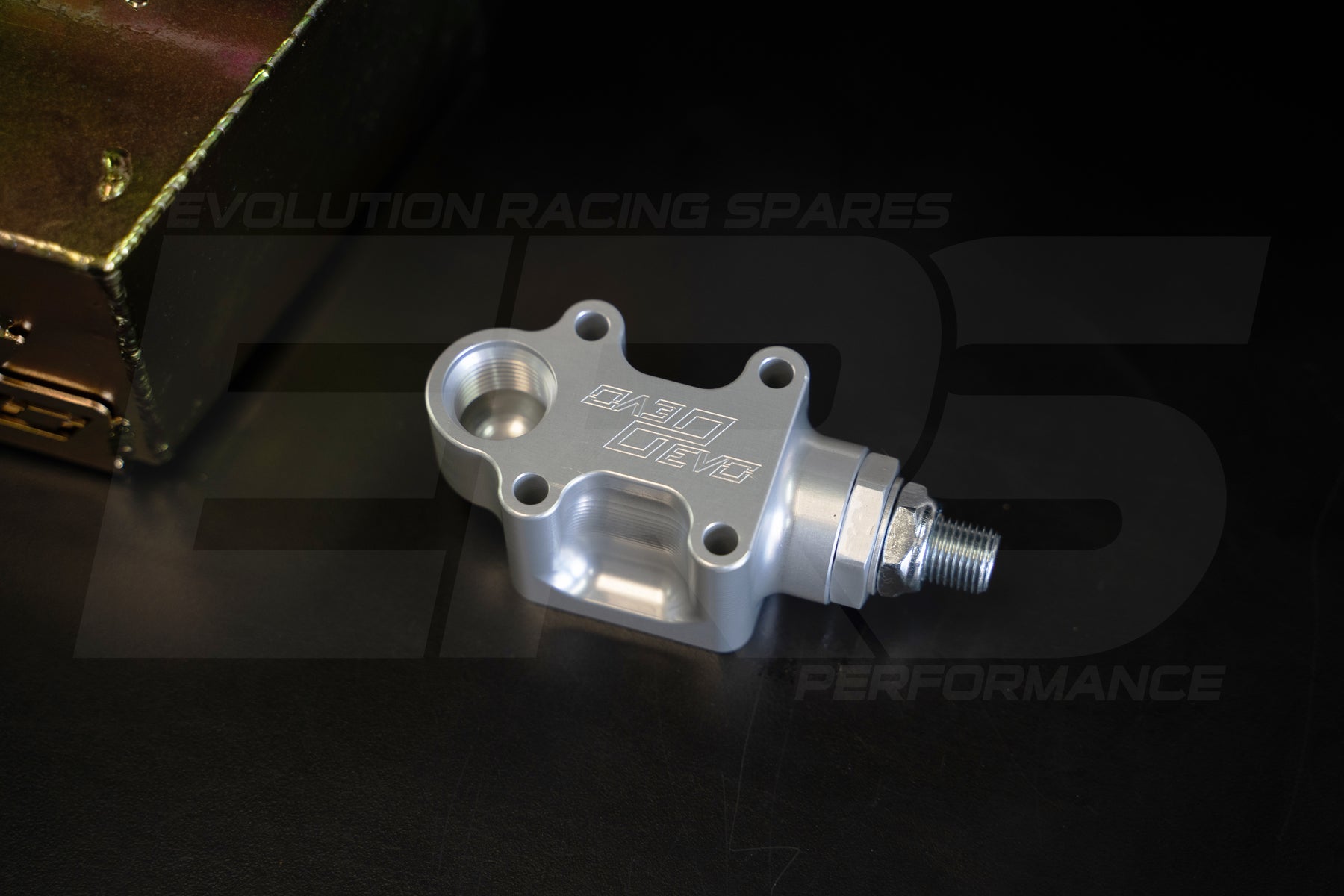

• External oil pressure regulator allowing oil pressure adjustment for varying engine and oil weight combinations as required.

• Additional 1/8 NPT oil temp port on sump.

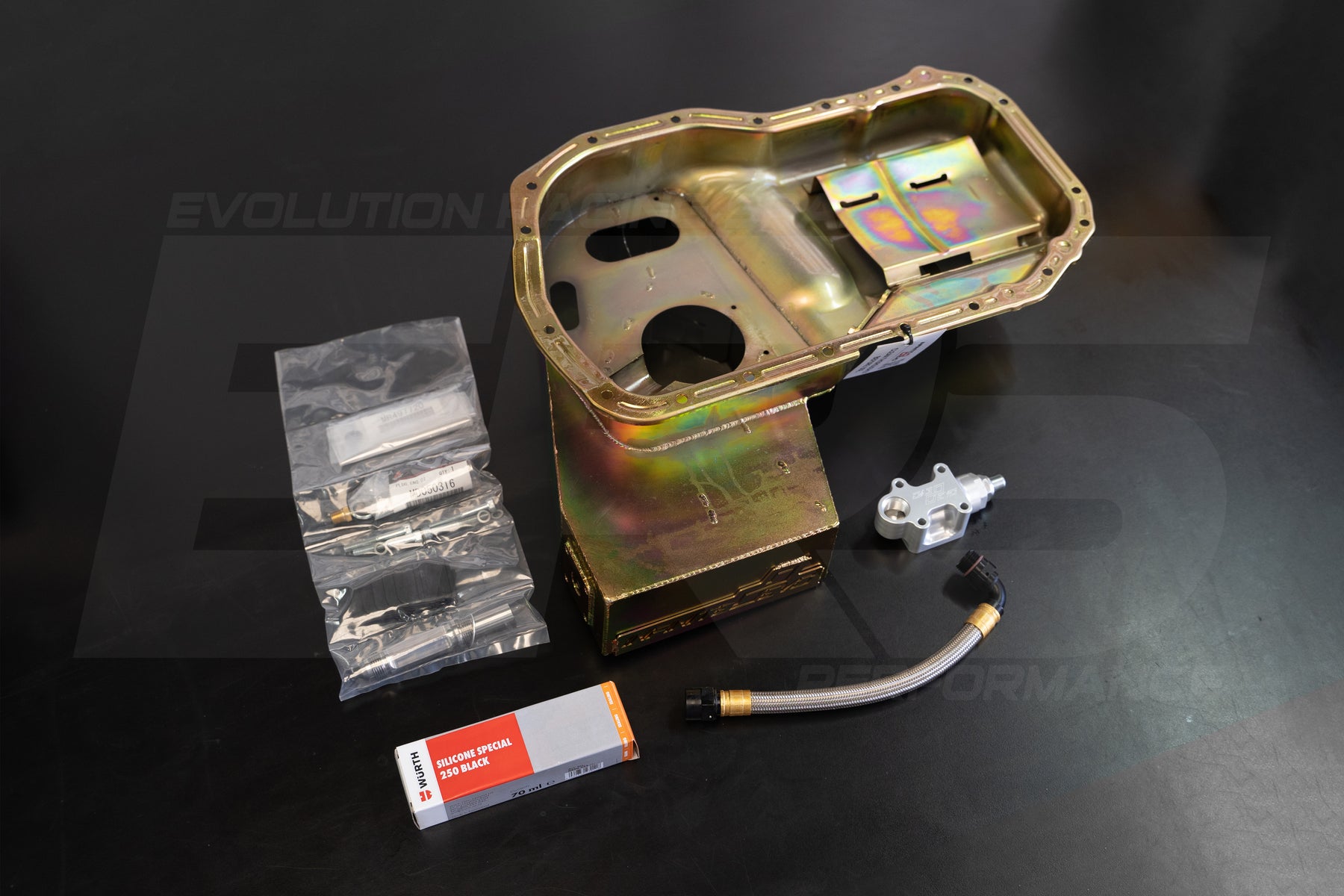

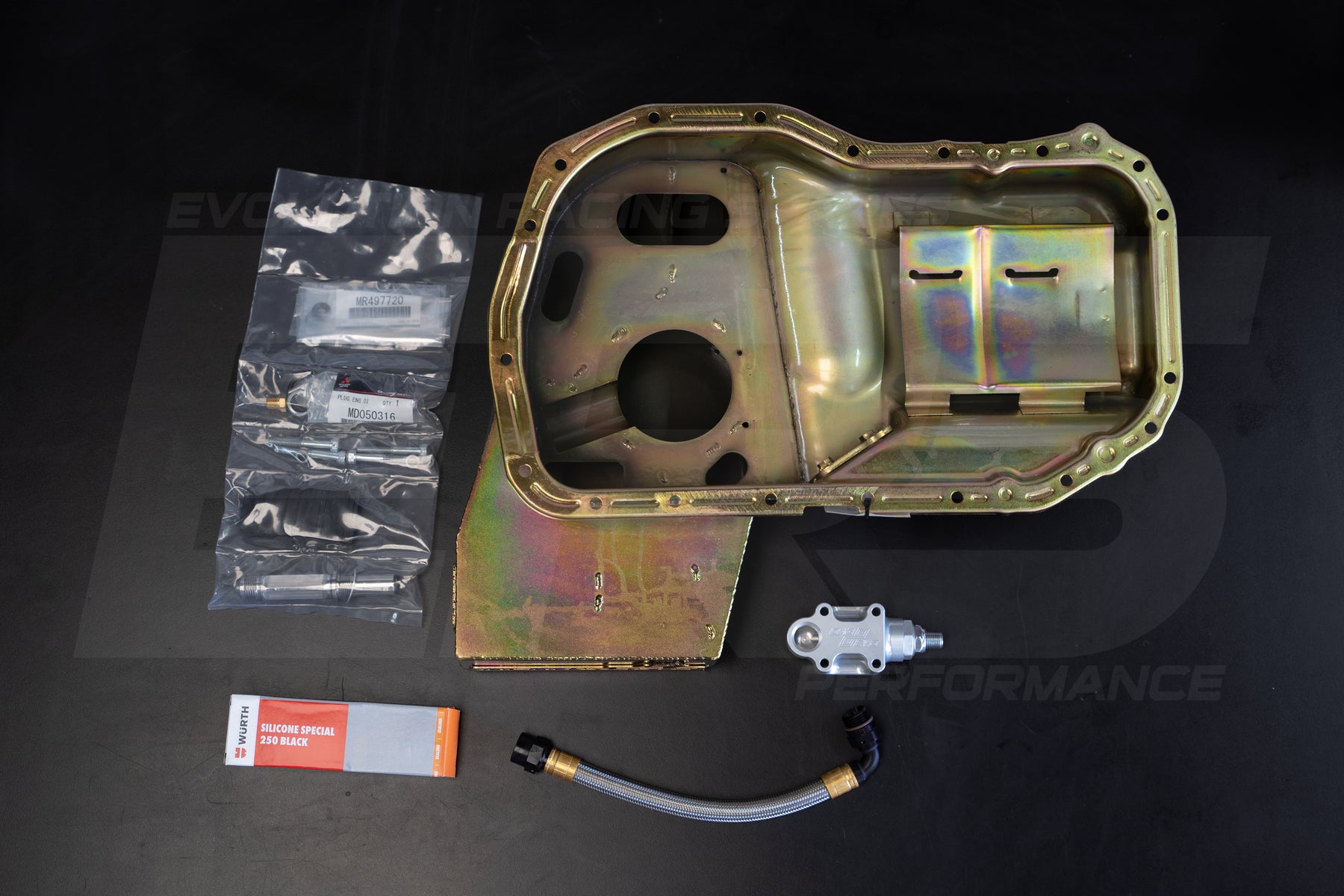

Sump kit includes:

• Genuine oil drain gasket and seals.

• OEM replacement sump plug and crush washer.

• All required bolts and washers for installation.

===============================================================

*** Please Note ***

This kit requires the use MD343947 oil pickup, which measures 125mm from block sealing surface to pickup tip. This gives 5mm pickup to pan clearance.

Older model Evo pickups (which are not available from Mitsubishi anymore) can sometimes be longer. This clearance needs to be checked.

These longer pickups can be modified to the correct clearance by the installer if required, however we recommend fitting the supplied Evo 9 pickup.

*** Please Note ***

Due to this sump being constructed to fit a factory Evo 9 installation, an Evo 9 turbo oil drain is required if a stock frame turbocharger is being used.

We have these available to purchase.
